SubWoofer SpeakerVSS28

작성자: 최고관리자님    작성일시: 작성일2016-08-15 11:30:27    조회: 647회    댓글: 0

FULLY DIGITAL SUBWOOFER SPEAKER [K.M.E.]

VERISO SERIES

VSS 28

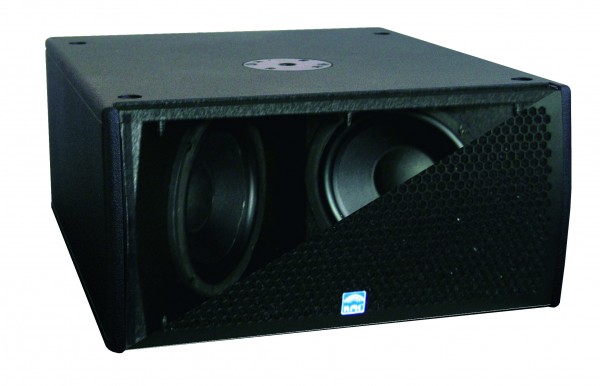

4e7ab57009b9d5bca37cdaf3a75738dd_1471228

제품 특징

- 8" 듀얼 유닛의 다이렉트 라디에이팅 서브 우퍼

- 24bit 48kHz 오디오 DSP 및 세개의 calss D 앰프를 구성

기기사양

Speaker

- Components: 2 x 8" Neodymium

- Frequency range (Hz): 45 - 160 Hz(fx), depending on preset

- SPL(max.) dB: 93 / 123

- Output power RMS: 400W bass +2 x 200w @ 4 Ohm

Electronic

- Amplifier: three fully digital amplifiers with

high efficiency, about 90%

- Features: Ground-free, adjustable gain,

digital crossover,

subsonic-filter, fully parametric EQ's,

peak/RMS-limiter,

delays(0-1000 ms), mute-function

- Protective circuits: short circuit, overload, temperature,

DC on output

- Connectors: analogue: line-in 2 x XLR, link-out 2 x XLR,

digital: AES EBU input & link (XLR),

speaker output 2 x Speakon

- Power requirements: 90 - 250 Volt / 50 - 60 Hz

- Control panel: 3 select buttons, multicolor LED,

1 – potentiometer, SD-card reader Processor

- DSP: 24 bit, 48 MHz getaktet / clock

- Unit delay: <1,5ms

- Sampling: 24bit

- Digital input & -link: AES/EBU with format /sample rate converter

(max. 192kHz)

- Preset memory: factory presets 8, user presets 4

- Finish: PU coating black, PU coating white optional

- Special features: 1 side-mounted handle, M20 fixing plate,

stacking elements

- Protective grille: high protective comb grid with acoustic foam

- Protection class: IP 44

- Dimensions (WxHxD) mm: 500 x 250 x 600

- Weight (kg): 21,5kg

- System extension (recommendation): Top actively channelled: VL3i, VL6i, VL8/VL8i

- Optional accessories: Protective cover
