DIGITAL CONTROLLER AMPLIFIER [K.M.E.]

DA SERIES

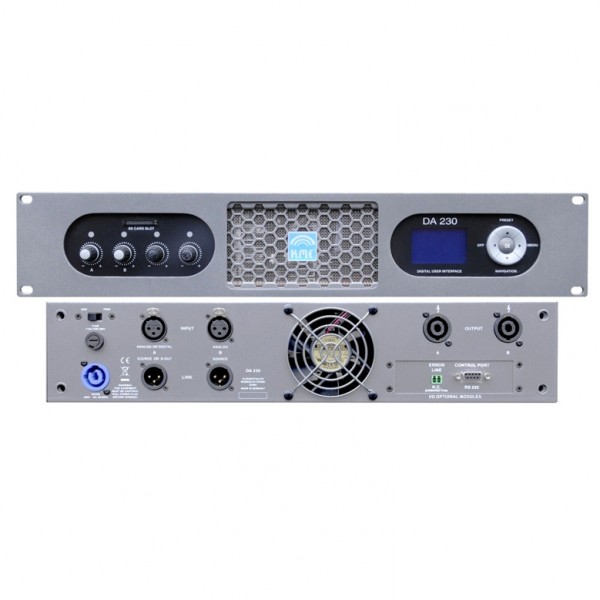

DA230

제품 특징

- DSP 내장

- 2채널 클래스D 앰프

기기 사양

- Output RMS @ 4 Ohm: 2 x 1500W

- Output RMS @ 8 Ohm: 750W

- Power consumtion: 2600W

- Frequency range: 20Hz - 20kH

- THD@ 1 kHz: < 0,5%

- Crosstalk @ 1 Hz: > 90dB

- Damping factor (1 kHz, int.): > 500

- Slew rate V/µs, int.: > 70

- Slew time µs/V, int.: < 1,5

- Input sensitivity: 0 dB (775 mV), adjustable Operation modes

- Protective circuits: For single channels : DC, short circuit,

impedance undercut For the device: under-/

over voltage, temperature, overload

- Power requirements: 90 - 250 Volt / 50 - 60 Hz, PowerCon

- Dimensions(W x H x D)mm: 483 x 88 x 375

- Weight (kg): 9kg
