Active SPEAKERVL760

작성자: 최고관리자님    작성일시: 작성일2016-08-15 10:27:08    조회: 932회    댓글: 0

DIGITAL ACTIVE SPEAKER(DIGITAL CONTROLLED) [K.M.E.]

VERISO SERIES

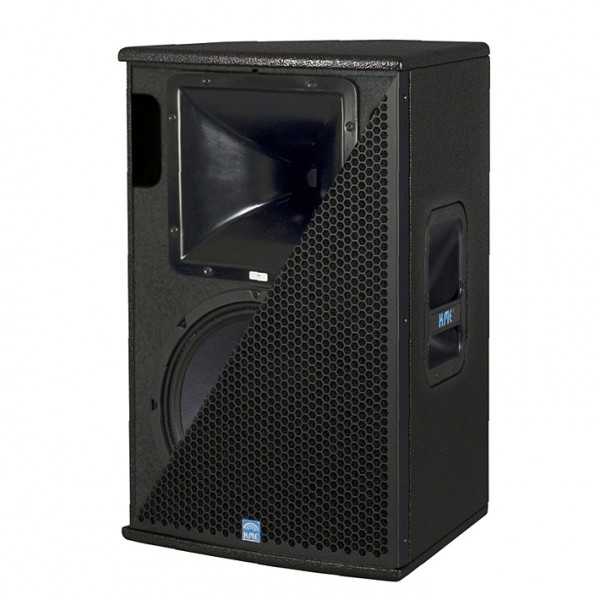

VL 760

4e7ab57009b9d5bca37cdaf3a75738dd_1471224



제품 특징

- DSP 내장

- 2채널 클래스D 앰프

기기사양

- Components: 15” + 1” bi-radial horn (neodymium)

- Dispersion (h x v): 80° x 60° (rotatable horn)

- Frequency range: 50Hz-19kHz

- SPL (max.) dB: 129dB

- Amplifier: two full digital amplifi ers with high

efficiency, about 90 %

- Power output RMS: 600 W bass / mid + 150 W high

- Features: adjustable gain, digital crossovers,

subsonic-filter, parametrical EQ’s, delays

(0 - 1000 ms)

- Protective circuits: short circuit, DC on output, under-/

over voltage, temperature, overload

- Power consumption: 850W

- Power requirements: 90 -250 Volt / 50 - 60 Hz, PowerCon

in + lin

- Control panel: ground free, navigation pad, potentiometer,

RGB LED, LCD-display

- Connectors: line-in 1 x XLR, link-out 1 x XLR

- DSP: 24 bit, 48 MHz clock

- Unit delay: <1,5ms

- Sampling: 24bit

- Digital input & -link: AES/EBU & S/PDIF with format /

sample rate converter

- Preset memory: factory presets 4, user presets 4

- Finish: PU coating black

- Special features: 2 side mounted handles, swivelling flange

with variable tilt angle +/- 20°, 4 x M8 treads

- Protective grille: high protective grille with acoustic foam

- Casing: multi-functional casing: monitor, top unit

- Dimensions(W x H x D)( mm): 460 x 740 x 440

- Weight(kg): 25kg
