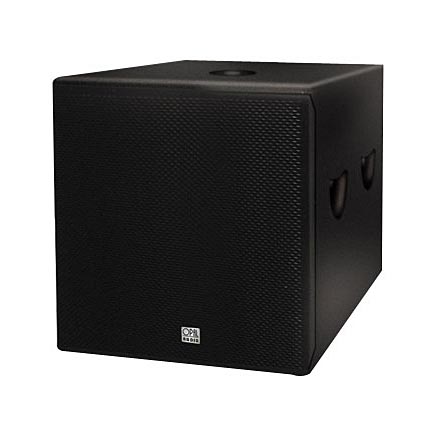

SUBWOOFER SPEAKER [OPAL. BASYS-18]
1) 기 능
본 기기는 전대역에 걸쳐 total subsonic 파워를 확장시키기 위한 목적으로
STASYS Series와 공용하기 위해 설계 되어져야 한다.
BASYS Series 캐비넷은 컴팩트하여 경량으로 Touring Concert Systems, Dance Clubs.
Cinemas 와 교회를 비롯하여 전문적인 오디오 등 모든 설치환경에 용이하여야 한다.
2) 기기사양
- Design: Compact, vented sub bass system
- Frequency range : 38Hz - 500kHz +/- 3dB
- Rated power capacity: 600W(RMS), 1200W(Program),
(AES Standard) 2400W(Peak)
- Impedance: 8Ω
- Dispersion (H x V): N
- Sensitivity (1W/1m): 99dB
- Peak SPL (1m): 133dB
- Components: 18"bass driver, 4" Voice Coil
- Fittings: 1" speaker pole mouniting socket
- Crossover Frequency : N
- Connectors: 2 x Speakon
- Weight (kg): 48 kg
- Dimension (H x W x D)mm: 560 x 560 x 650
